# Managing Stations

On this page, we will explain how you can **edit** or **create** a new custom location for your server. You can do this in your `Config.lua` file and `Config.Stations` table.

***

## 1. Location Structure

Each location consists of only **3 coordinates** and 3 **values**. This is possible because the system calculates the rest of the needed coordinates automatically, based on the origin points of the objects listed below.

<pre class="language-lua" data-title="Example of Station"><code class="lang-lua"><strong>{
</strong>    cable = vec3(175.11, -1738.57458, 33.186),
    nozzle = vec3(174.521362, -1741.59753, 29.78719),
    nozzleRot = vec3(0.0, 45.0, 0.0),
    interface = vec3(177.0171, -1741.91028, 29.8663769),
    interfaceRot = vec3(0.0, 0.0, -90.0),
    cableLength = 5.0  -- Optional. Default is 5.0
    radius = 3.0,
    price = 10,
    requiredJob = nil,
}
</code></pre>

***

{% tabs %}
{% tab title="Cable" %}

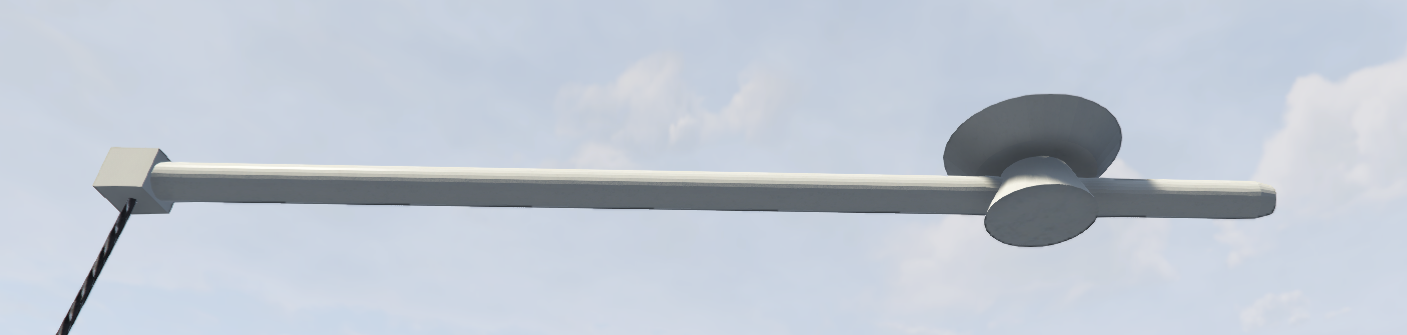

Coordinates of the **hose mount point** (bearing). This is the part of the model:<br>

<figure><img src="/files/eUvhKwuk61vS6RbGNNrp" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Nozzle" %}

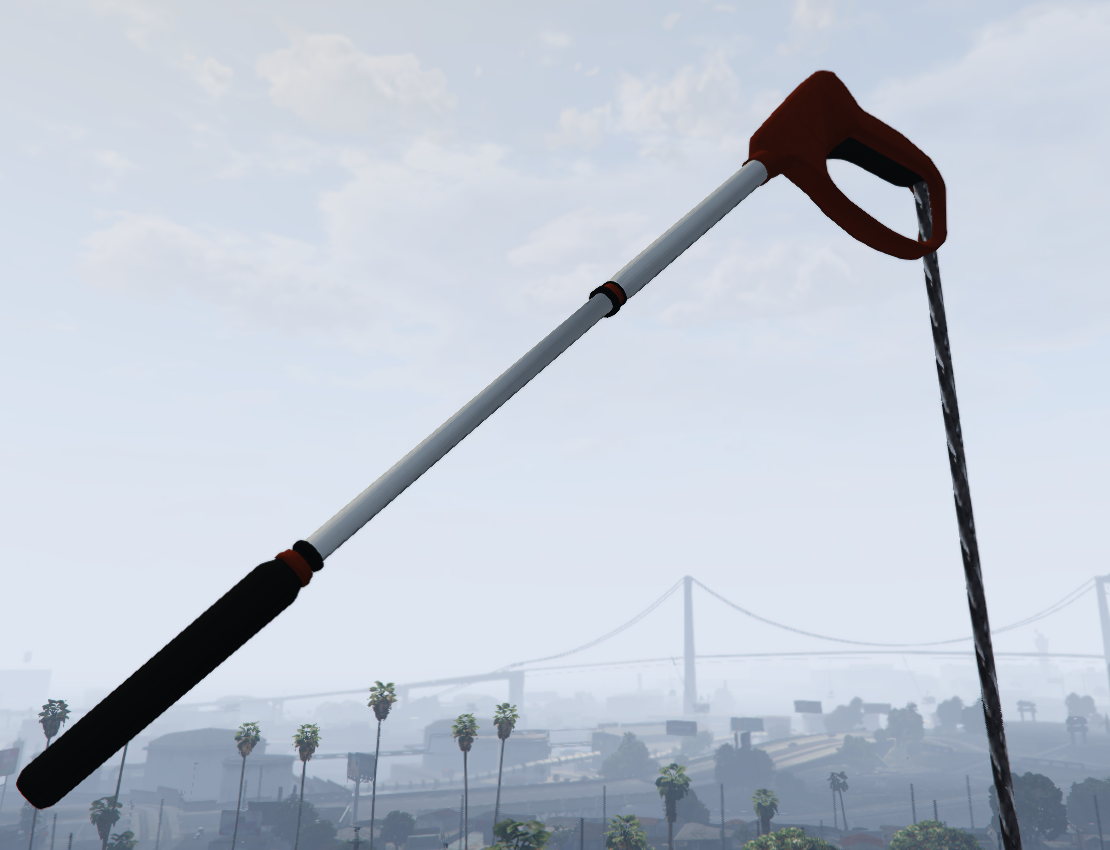

Coordinates of the **resting position of the lance**. This is where players pick up the lance:

<figure><img src="/files/TpoUfsrEA1U7zuk1I4ZG" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Interface" %}

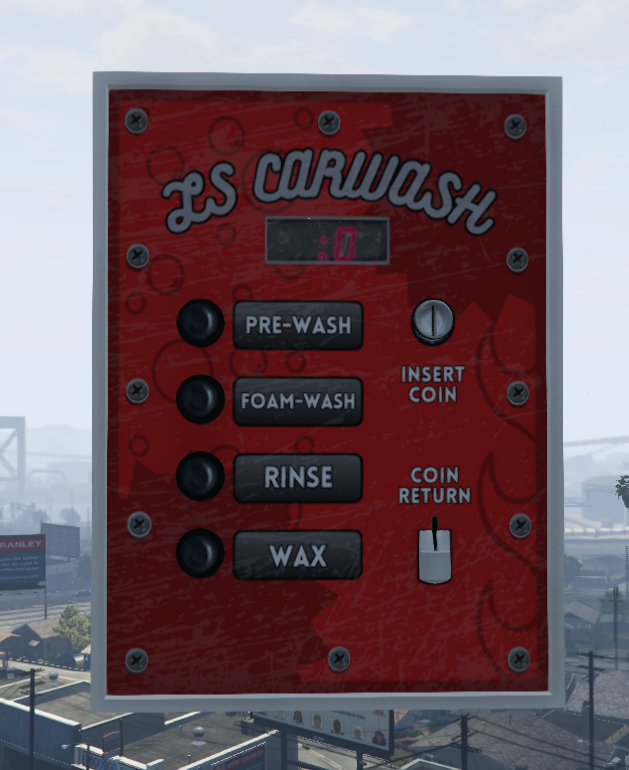

Coordinates of the **interface point**. This is where players **pay** and **start** the car wash:

<figure><img src="/files/21cdpNZAPEsIQf5Lbqnl" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Radius" %}
Defines how far from the **cable origin point** the hose should be attached. For the default model, this value is always: `3.0`
{% endtab %}

{% tab title="cableLength" %}
Defines the **length of the hose in meters** connecting the mount to the lance. Useful if the mount is **higher than 3.5m** above the lance. This prevents the hose from looking like a stiff line and instead simulates **gravity** in the hose physics.
{% endtab %}

{% tab title="Price" %}
The cost in dollars that a player must pay to wash their vehicle.
{% endtab %}
{% endtabs %}

### Required Job

Requires a **string value**. This defines which **server job** can use the lance. If set to `nil`, then **everyone** on the server can use it.

***

## 2. Adding a New Location

To add a new car wash location:

1. Copy the template below.
2. Paste it into the `Config.Stations` table in your config.
3. Fill in the coordinates according to the instructions above.

```lua
{
    cable = vec3(),
    nozzle = vec3(),
    nozzleRot = vec3(),
    interface = vec3(),
    interfaceRot = vec3(),
    radius = 3.0,
    cableLength = 5.0  -- Optional. Default is 5.0
    price = 10,
    requiredJob = nil,
}
```


---
